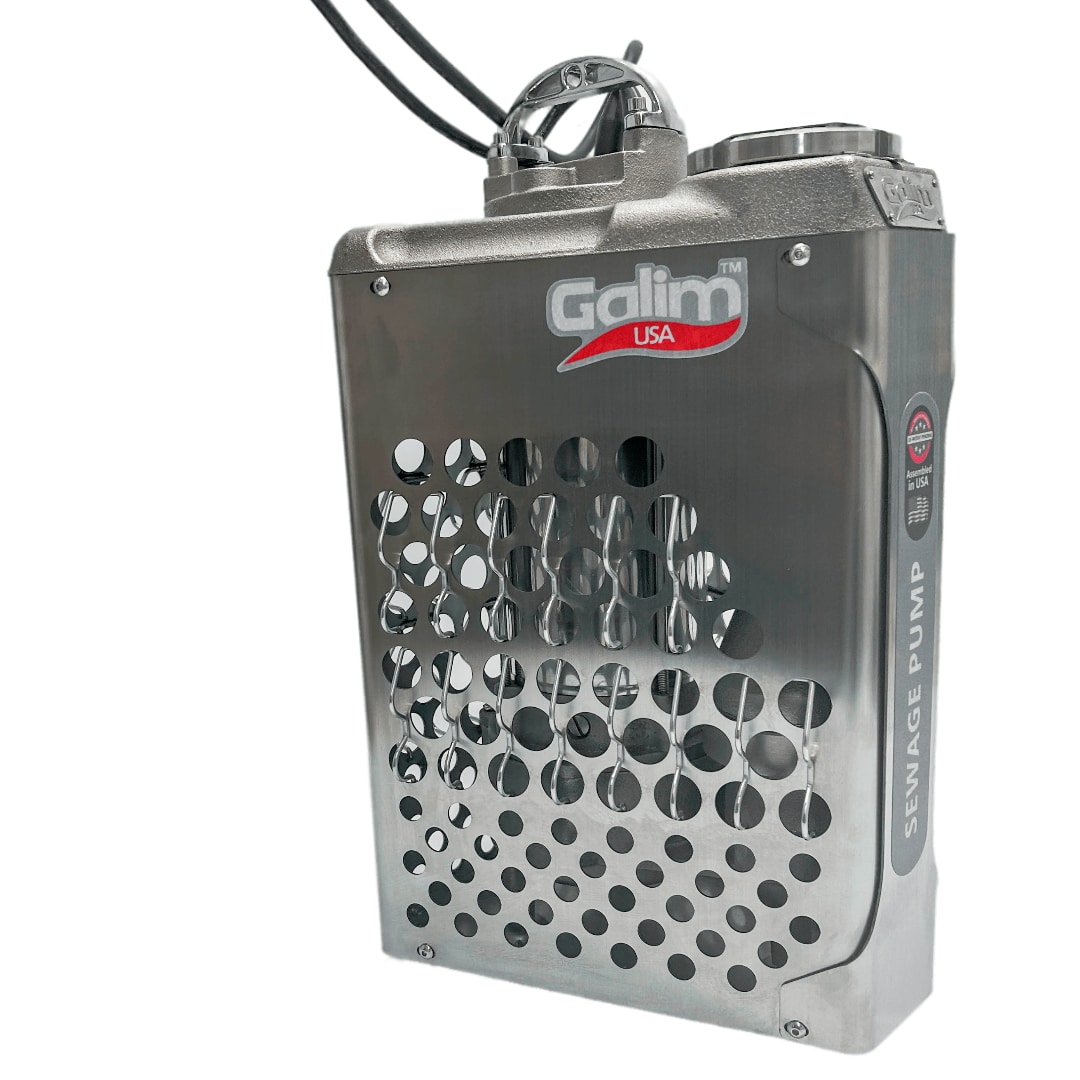

Sewage 1 HP – 115V – SEW10011M
MODEL: SEW10011M
MOTOR: 1 HP
VOLTAGE: 115 V
AMPS: 9,6 Amps
MAX HEAD: 53 ft (16,5 m)
WEIGHT: 62 LBS
MAX FLOW RATE: 96 GPM (384 LPM)
UF/V CAPACITOR SIZE: 60 / 250 Uf/v
FREQUENCY: 60 Hz
PHASE: 1 Ph
ANGULAR SPEED: 3450 RPM
INSULATION: Class F
MOTOR PROTECTION: Auto reset thermal overload
DISCHARGE SIZE: 2″
SOLIDS HANDLING: 1″ (25 mm)
CORD LENGTH 20 Ft (6 m)
IMPELLER: Stainless Steel AISI-304
MOTOR HOUSING: Stainless Steel AISI-304
MOTOR SHAFT: Stainless Steel AISI-304
PUMP HOUSING: Cast iron ht 200
UPPER & LOWER BEARING: NKS 204 & NSK 202
MECHANICAL SEALS: Graphite & Ceramic
COOLING: Oil Filled
Non-clogging sewage drainage pump prevents the blockage of the pipes. Protects the environment. Patented designed, assembled, and tested in the USA.
Non-clogging sewage pump.
Stainless steel shell AISI-304.
AISI-304 stainless steel barrier strategically located to filter wet wipes, feminine products, tampons, pads, baby wipes, and diapers.
Open stainless steel impeller made with AISI-304, Sewage models.
Helical impeller with steel cutting blade made with Gcr15 Grinder models.
Built-in flap-type sewer check valve, which allows passage of whole solids up to 1".
Built-in air relief valve.
Pumps solids up to 1 "in diameter.
Protects against clogging from sedimentation.
Protects against the entry of common objects such as; Toilet bowl cleaner sanitizing, baskets, tablets, gloves, bags, toys, ropes, nails, bolts, wires, cables, cans, rigid plastics, metallic sponges, rags, silverware, etc.
Pump motor casing made of AISI-304 stainless steel.
Cast iron parts with nickel plating.
Copper winding motor. Insulation class F.
NSK Ball bearings.
Thermal Overload Protector.
